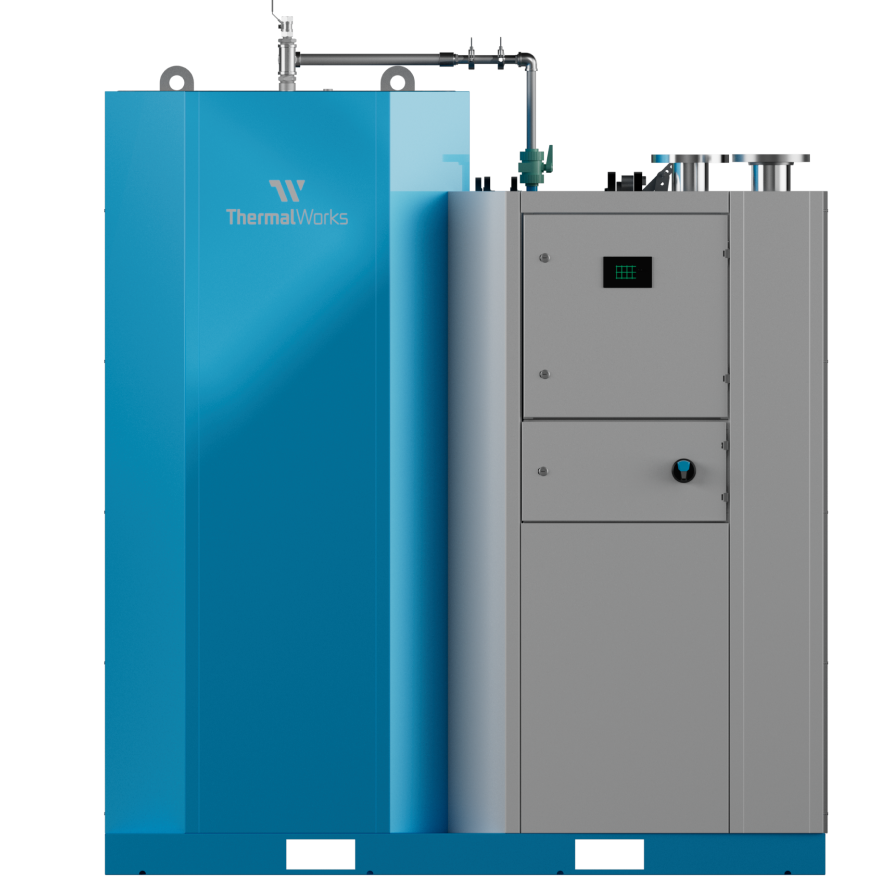

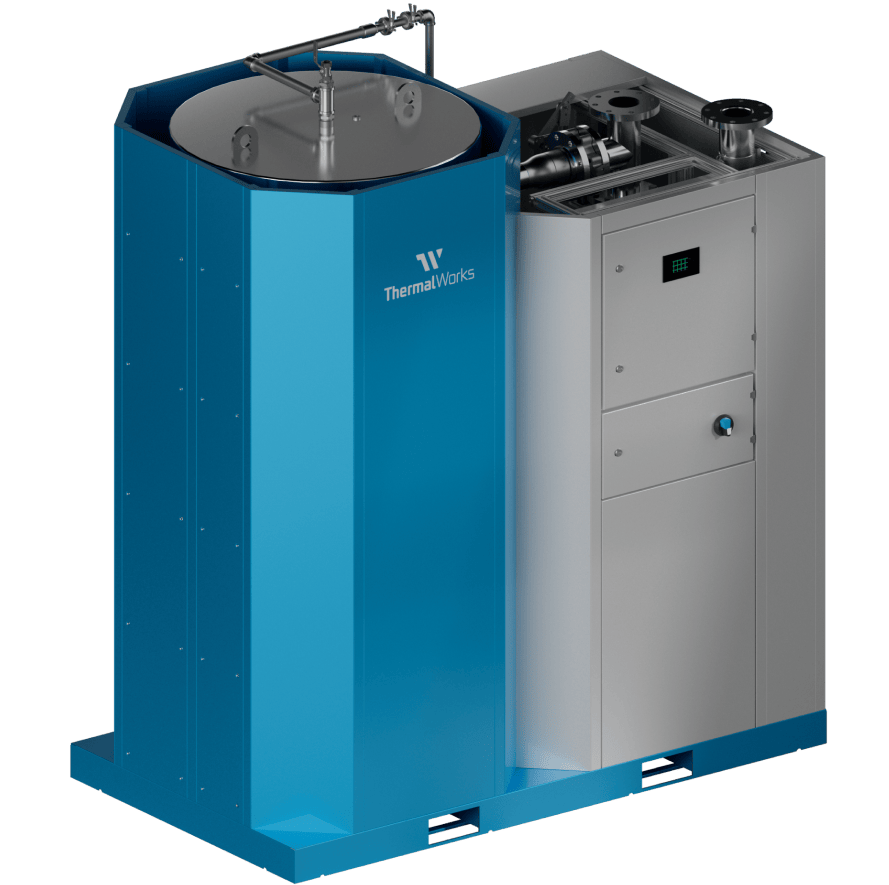

Thermal Storage Unit
The ThermalWorks TSU is a compact thermal buffer built for high-density AI environments and designed to replace a buffer tank. It absorbs short-duration thermal spikes that bypass the CDU, delivering 90 seconds of full-load ride-through to protect AI workloads without pulling UPS power from cooling pumps. With a footprint four times smaller than traditional buffer tanks, the TSU is ideal for AI retrofits and space-constrained data centers where performance and resilience can’t be compromised.
KEY FEATURES
Heading 1
Heading 2
Heading 3
Heading 4
Heading 5
Heading 6
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.
Block quote
Ordered list
- Item 1
- Item 2
- Item 3
Unordered list
- Item A
- Item B
- Item C
Bold text
Emphasis
Superscript
Subscript
KEY FEATURES
- Multi-pass microchannel coils
- Variable speed fan features an electronically commutated motor (ECM) to support high air flow levels while minimizing energy consumption.
- Radial and axial air flow options.
- Variable flow control valve for glycol fluid.
- Programmable logic control (PLC) panel
- Optional air diffuser precisely directs airflow to ensure even mixing and avoid hotspots.
Compact Thermal Storage for AI Workloads
ENHANCED COOLING EFFICIENCY FOR AI
Designed for AI workloads, the system improves cooling effectiveness and saves energy by precisely containing hot air and minimizing mixing with cold air.
ADAPTABILITY TO VARIOUS TECHNOLOGIES
The HAC offers compatibility when upgrading to liquid cooling solutions or optimizing existing air-cooled infrastructures.
EFFICIENT CABLE MANAGEMENT
The adjustable support arms for cable trays enhance overall cable organization andaccessibility, reducing potential interference.
RAPID DEPLOYMENT AND SAVINGS
Save up to 50% on labor with factory-assembled elements. ThermalWorks expert, ready-to-deploy crews ensure your containment solutions are installed promptly and properly.
Instant Recovery
With instant thermal response and accelerated recovery when paired with the ThermalWorks CDU, the TSU safeguards mission-critical environments through any power event.
Modular by Design
Designed with modular scalability and agility for high-density AI workloads, the TSU integrates with the CDU to deliver six-nines of reliability and faster recovery time.
Unified System

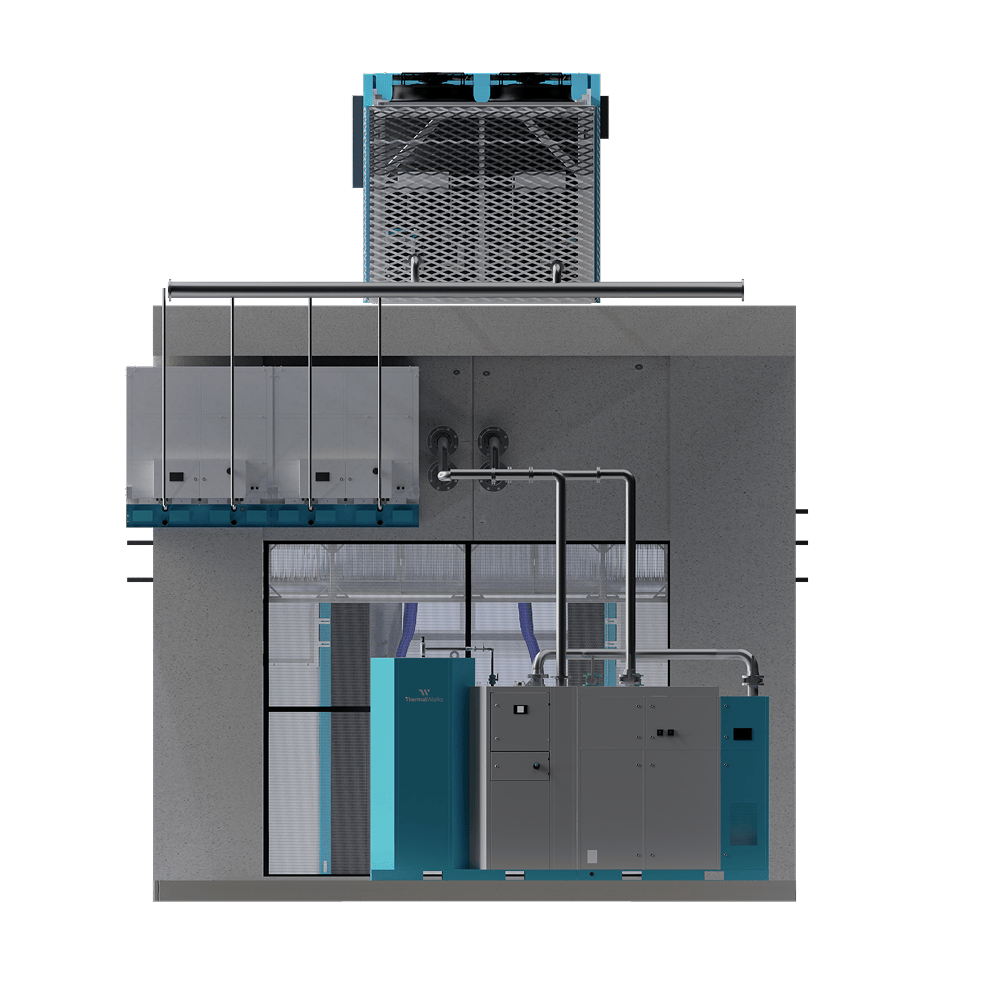

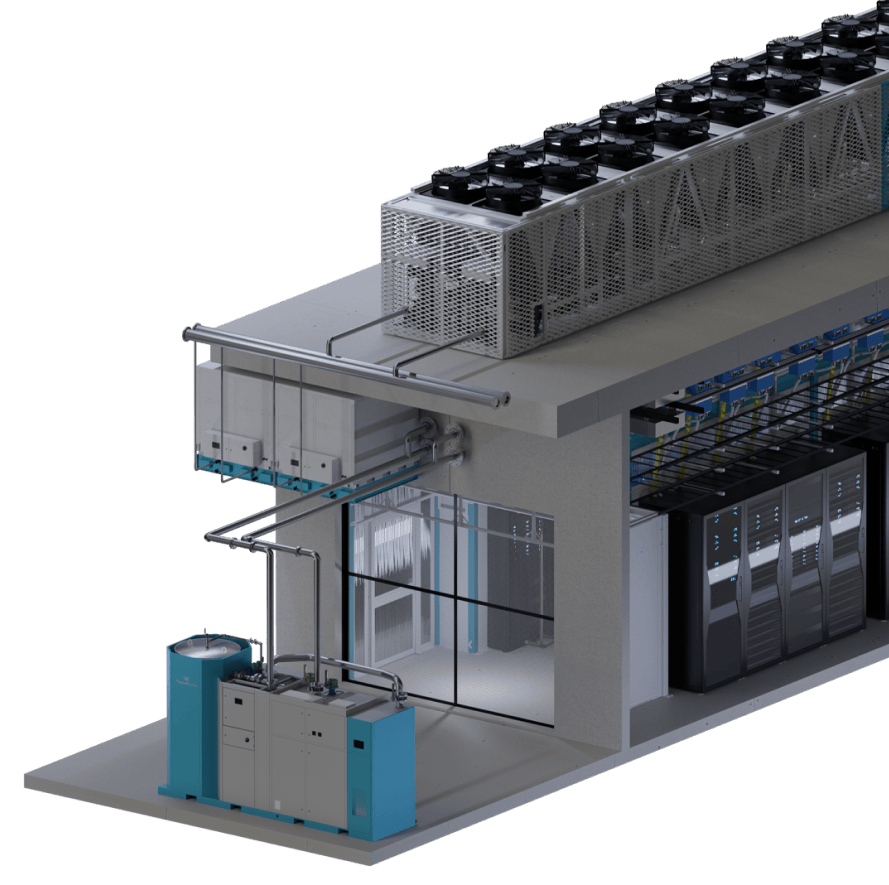

Part of a unified ThermalWorks chiller and CDU system, the fully plug-and-play TSU ensures true thermal ride-through for mission-critical operations.
Built for Uptime
The TSU delivers complete thermal ride through, maintaining uninterrupted cooling that enhances uptime, efficiency and long-term power reliability.
Key Features
Plug-and-play integration with ThermalWorks systems
Faster recovery with six-nines reliability
Space-efficient 270 gal / 1000 L storage
Three-way valve modulates cold glycol during thermal spikes
First Stage Thermal Recharge Heat Exchanger cools glycol to approximately 65°F[18.3°C]
Second Stage Thermal Recharge Heat Exchanger cools glycol to approximately 20°F[-6.7°C]
Specifications
MANUFACTURER'S DATA
Selection Manufacturer
ThermalWorks™
Model No.
PT-1000L
Performance Data
Nominal Cooling Storage Ride-Through-Time*
90 Seconds
Nominal Thermal Recharge Time
4-6 Hours
Refrigerant Type
R448A
Storage Tank Volume
270 gal [1,000 L]
PRIMARY CIRCUIT
(30% Propylene Glycol and water by volume typical)
Fluid Inlet
60-70 °F
Fluid Outlet
80-90 °F
Flow Rate (pressure independent)
9 gpm
Pressure Drop
5 - 10 psi
Design Pressure
150 psi
SECONDARY CIRCUIT
(25% Propylene Glycol and water by volume typical)
Fluid Inlet
95-113 °F
Fluid Outlet
70-80 °F
Flow Rate
200 - 400 gpm
Pressure Drop
< 2 psi
Design Pressure
125 psi
CONDENSING UNIT
Compressor Current
MCC 8.82A, LRA 25A
Volts/Ph/Hz
415/400/3/50
POWER PANEL
Volts/Ph/Hz/A
415/400 VAC / 3 Ph / 50Hz / 9A
control panel
UPS Connections QTY
2
UPS Volts/Ph/Hz/A
230 VAC/ 1 Ph / (50/60) Hz / 2A
Communication
BACnet, Modbus
Physical Data
Length x Width x Height
91.1 x 48.3 x 99.6 in
Shipping Weight
1,200 lb
Operating Weight
2,400 lb
The performance of the equipment is based on normal operation ±5%.
Selection Manufacturer
ThermalWorks™
Model No.
PT-1000L
Nominal Cooling Storage Ride-Through-Time*
90 Seconds
Nominal Thermal Recharge Time
4-6 Hours
Refrigerant Type
R448A
Storage Tank Volume
270 gal [1,000 L]
(30% Propylene Glycol and water by volume typical)
Fluid Inlet
60-70 °F
Fluid Outlet
80-90 °F
Flow Rate (pressure independent)
9 gpm
Pressure Drop
5 - 10 psi
Design Pressure
150 psi
(25% Propylene Glycol and water by volume typical
Fluid Inlet
95-113 °F
Fluid Outlet
70-80 °F
Flow Rate (pressure independent)
200 - 400 gpm
Pressure Drop
< 2 psi
Design Pressure
125 psi
Compressor Current
MCC 8.82A, LRA 25A
Volts/Ph/Hz
415/400/3/50
Volts/Ph/Hz/A
415/400 VAC / 3 Ph / 50Hz / 9A
UPS Connections QTY
2
UPS Volts/Ph/Hz/A
230 VAC/ 1 Ph / (50/60) Hz / 2A
BACnet, Modbus
Length x Width x Height
91.1 x 48.3 x 99.6 in
Shipping Weight
1,200 lb
Operating Weight
2,400 lb
