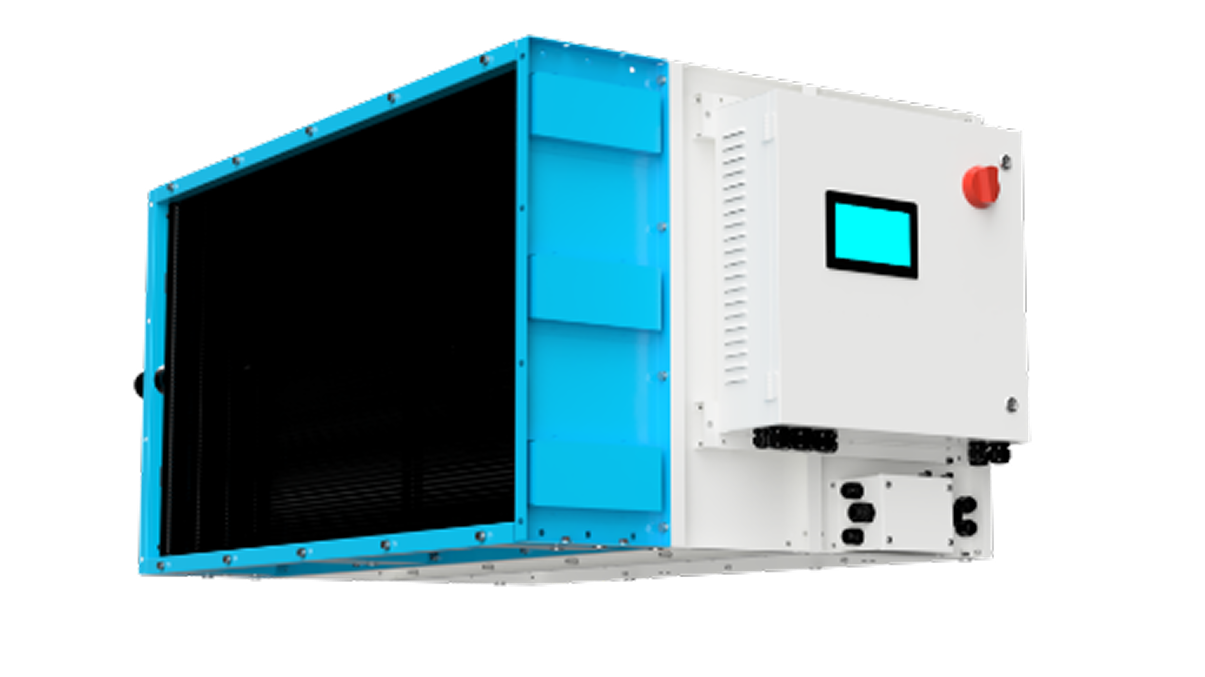

A65 Precision Air Handler

The ThermalWorks A65 Precision Air Handler provides high capacity air cooling with high delta-T and energy efficient operation for data centers. Each Air Handler features custom micro-channel coils, an efficient ECM fan, variable flow valves and onboard programmable controller that enables direct control of any unit in an array.

KEY FEATURES
  • Multi-pass microchannel coils
  • Variable speed fan features an electronically commutated motor (ECM) to support high air flow levels while minimizing energy consumption
  • Radial and axial air flow options
  • Variable flow control valve for glycol fluid
  • Programmable logic control (PLC) panel
  • Optional air diffuser precisely directs airflow to ensure even mixing and avoid hotspots
KEY FEATURES
  • Multi-pass microchannel coils
  • Variable speed fan features an electronically commutated motor (ECM) to support high air flow levels while minimizing energy consumption
  • Radial and axial air flow options
  • Variable flow control valve for glycol fluid
  • Programmable logic control (PLC) panel
  • Optional air diffuser precisely directs airflow to ensure even mixing and avoid hotspots
Download Spec Sheet
Find Sales Contact

Adaptive Cooling with Maximum Efficiency

Efficient Heat Transfer for Data Halls
Multi-pass microchannel coils maximize heat transfer from air to a glycol-based cooling loop, ensuring optimal performance.
Energy-Saving Variable Speed Fan
An electronically commutated motor (ECM) adjusts airflow levels for efficiency, with radial and axial options to suit diverse data hall configurations.
Self-Balancing Glycol Flow Control
A variable flow control valve scales cooling capacity without manual rebalancing, maintaining system stability.
Smart Adaptive Controls
A programmable logic control (PLC) panel dynamically adjusts fan speed and flow valve position for real-time optimization.
Targeted Airflow to Prevent Hotspots
An optional air diffuser ensures even air distribution, eliminating temperature inconsistencies.
Reliable Dual Power Sources
Redundant A and B power inputs (3-phase 400/460 VAC, 50/60 Hz) ensure continuous, fail-safe operation.

Specifications

COOLING CAPACITY
Air Flow
External Static Pressure
Cooling (Total)
FLUID
Fluid Type
Entering Fluid Temperature
Leaving Fluid Temperature
Fluid Flow Rate
Fluid Pressure Drop
FLUID PIPE SIZES
Supply - NPS
Return - NPS
FAN
Type
Quantity
FLA
ELECTRICAL DATA
Volts/Ph/Hz
PHYSICAL DATA
Length x Width x Height
Shipping Weight
Operating Weight
COOLING CAPACITY
Air Flow
External Static Pressure
Cooling (Total)
FLUID
Fluid Type
Entering Fluid Temperature
Leaving Fluid Temperature
Fluid Flow Rate
Fluid Pressure Drop
FLUID PIPE SIZES
Supply - NPS
Return - NPS
FAN
Type
Quantity
FLA
ELECTRICAL DATA
Volts/Ph/Hz
PHYSICAL DATA
Length x Width x Height
Shipping Weight
Operating Weight
COOLING CAPACITY
Air Flow
7,500 CFM
External Static Pressure
0.5 inches H2O
Cooling (Total)
35 kW
FLUID
Fluid Type
30% glycol/water by volume
Entering Fluid Temperature
62°F
Leaving Fluid Temperature
81°F
Fluid Flow Rate
13 gpm
Fluid Pressure Drop
12.5 psi
FLUID PIPE SIZES
Supply - NPS
1.25 inches
Return - NPS
1.25 inches
FAN
Type
Centrifugal
Quantity
2
FLA
2.3 @ 400 VAC 2.0 @ 460 VAC
ELECTRICAL DATA
Volts/Ph/Hz
400/3/50 or 460/3/60
PHYSICAL DATA
Length x Width x Height
40.25 x 66.25 x 32 inches
Shipping Weight
675 lb
Operating Weight
487 lb
COOLING CAPACITY
Air Flow
7,500 CFM
External Static Pressure
0.5 inches H2O
Cooling (Total)
35 kW
FLUID
Fluid Type
30% glycol/water by volume
Entering Fluid Temperature
62°F
Leaving Fluid Temperature
81°F
Entering Air Temperature
Leaving Air Temperature
Fluid Flow Rate
13 gpm
Fluid Pressure Drop
12.5 psi
FLUID PIPE SIZES
Supply - NPS
1.25 inches
Return - NPS
1.25 inches
FAN
Type
Centrifugal
Quantity
2
FLA
2.3 @ 400 VAC 2.0 @ 460 VAC
ELECTRICAL DATA
Volts/Ph/Hz
400/3/50 or 460/3/60
PHYSICAL DATA
Length x Width x Height
40.25 x 66.25 x 32 inches
Length x Width x Height (Max)
Length x Width x Height (Min)
Shipping Weight
675 lb
Operating Weight
487 lb
Cooling Capacity
Fluid
Fluid Pipe Sizes
FAN
Electrical data
Physical Data
Air Flow
External Static Pressure
Cooling (Total)
Fluid Type
Entering Fluid Temperature
Leaving Fluid Temperature
Fluid Flow Rate
Fluid Pressure Drop
Supply - NPS
Return - NPS
Type
Quantity
FLA
Volts/Ph/Hz
Length x Width x Height
Shipping Weight
Operating Weight
Cooling Capacity
Fluid
Fluid Pipe Sizes
FAN
Electrical data
Physical Data
Air Flow
External Static Pressure
Cooling (Total)
Fluid Type
Entering Fluid Temperature
Leaving Fluid Temperature
Fluid Flow Rate
Fluid Pressure Drop
Supply - NPS
Return - NPS
Type
Quantity
FLA
Volts/Ph/Hz
Length x Width x Height
Shipping Weight
Operating Weight
Cooling Capacity
Fluid
Fluid Pipe Sizes
FAN
Electrical data
Physical Data
Air Flow
7,500 CFM
External Static Pressure
0.5 inches H2O
Cooling (Total)
35 kW
Fluid Type
30% glycol/water by volume
Entering Fluid Temperature
62°F
Leaving Fluid Temperature
81°F
Fluid Flow Rate
13 gpm
Fluid Pressure Drop
12.5 psi
Supply - NPS
1.25 inches
Return - NPS
1.25 inches
Type
Centrifugal
Quantity
2
FLA
2.3 @ 400 VAC 2.0 @ 460 VAC
Volts/Ph/Hz
400/3/50 or 460/3/60
Length x Width x Height
40.25 x 66.25 x 32 inches
Shipping Weight
675 lb
Operating Weight
487 lb
Cooling Capacity
Fluid
Fluid Pipe Sizes
FAN
Electrical data
Physical Data
Air Flow
7,500 CFM
External Static Pressure
0.5 inches H2O
Cooling (Total)
35 kW
Fluid Type
30% glycol/water by volume
Entering Fluid Temperature
62°F
Leaving Fluid Temperature
81°F
Fluid Flow Rate
13 gpm
Fluid Pressure Drop
12.5 psi
Supply - NPS
1.25 inches
Return - NPS
1.25 inches
Type
Centrifugal
Quantity
2
FLA
2.3 @ 400 VAC 2.0 @ 460 VAC
Volts/Ph/Hz
400/3/50 or 460/3/60
Length x Width x Height
40.25 x 66.25 x 32 inches
Shipping Weight
675 lb
Operating Weight
487 lb

Air Flow Options

ThermalWorks Air Handlers can be factory-configured to support multiple air flow patterns and varied data center designs.

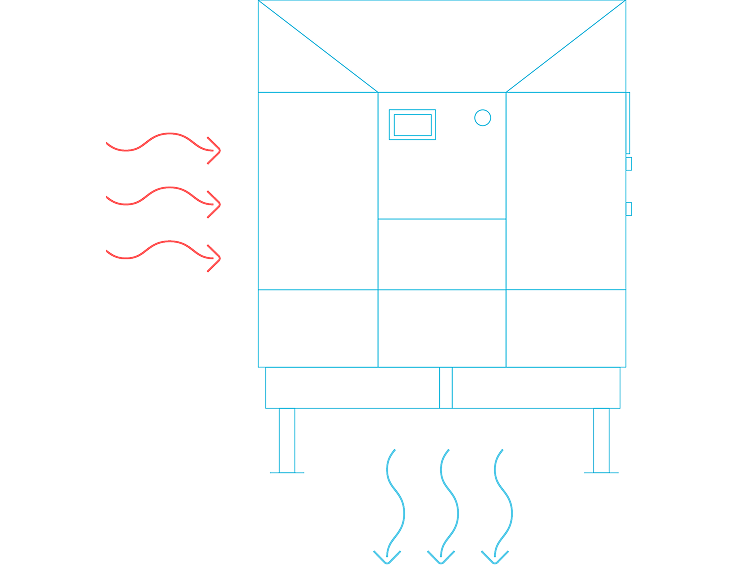

90° DOWN FLOW

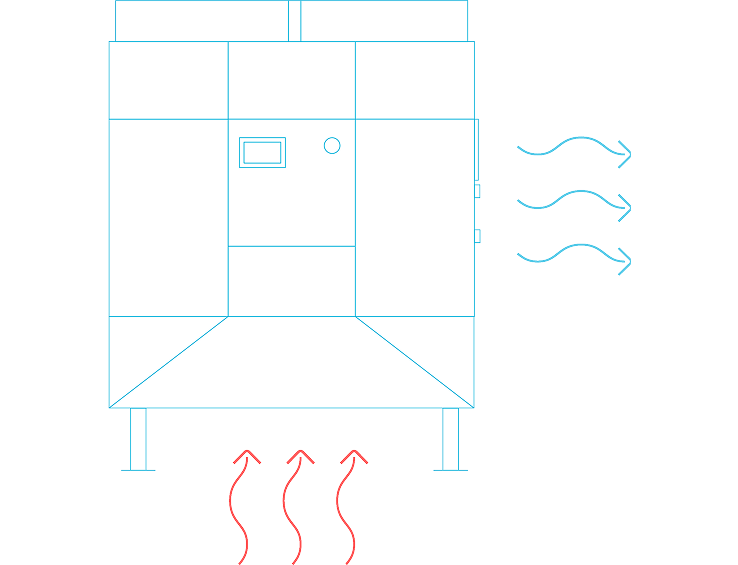

90° UP FLOW
90° Down Flow
90° Up Flow

Air Flow Options

ThermalWorks Air Handlers can be factory-configured to support multiple air flow patterns and varied data center designs.
HORIZONTAL FLOW
90° DOWN FLOW
90° UP FLOW
Horizontal Flow
90° Down Flow
90° Up Flow

Air Flow Options

ThermalWorks Air Handlers can be factory-configured to support multiple air flow patterns and varied data center designs.
HORIZONTAL FLOW
90° DOWN FLOW
90° UP FLOW
Horizontal Flow
90° Down Flow
90° Up Flow

Mix and Match

ThermalWorks Air Handlers have optional flexible building block that allow for many configurations (mix, match, rotate, stack or hang) for different data hall needs.

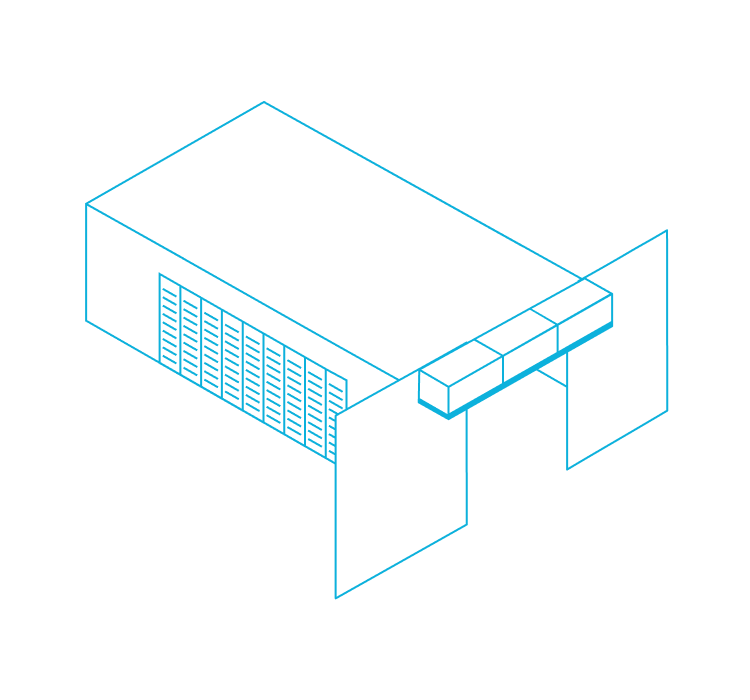

Isolated hot aisles with overhead air cooling

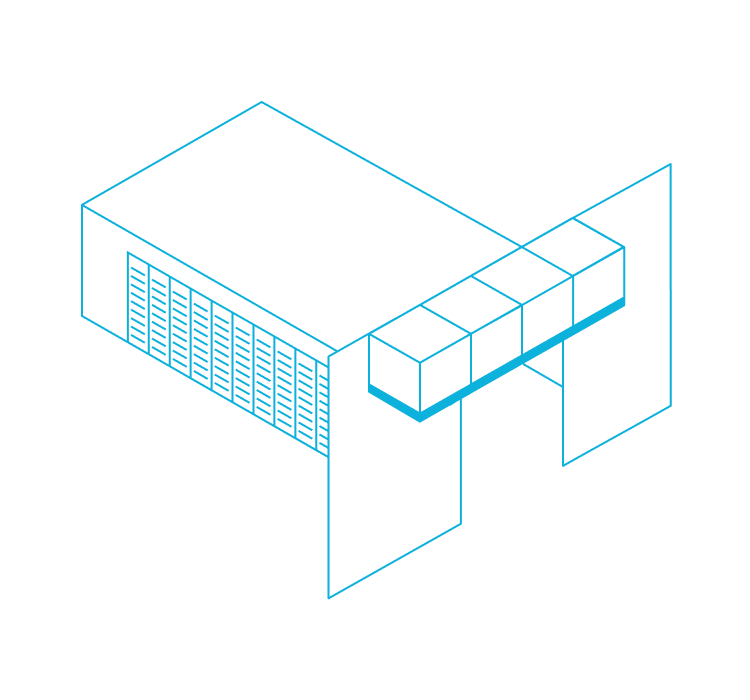

Wall and overhead cooling, lower densities

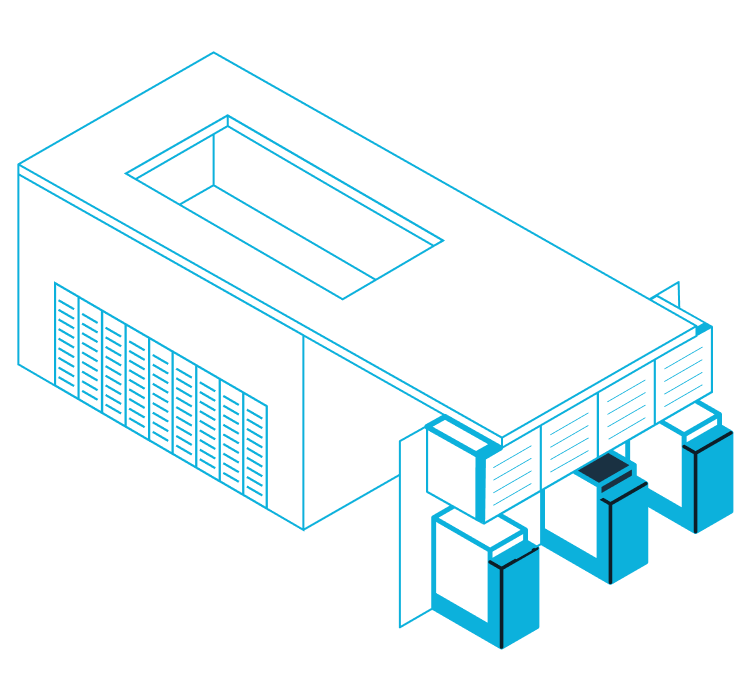

Liquid cooling and hybrid integration

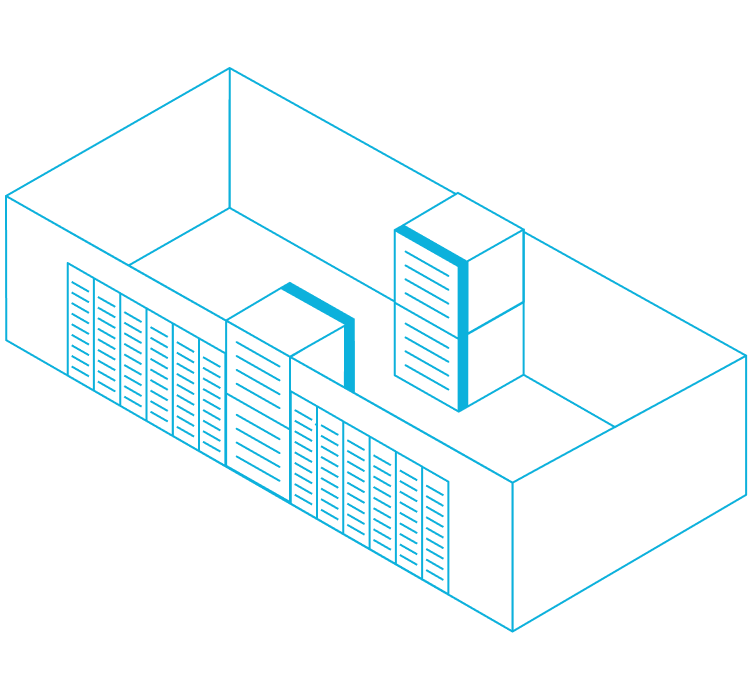

Mid-aisle cooling, low & moderate densities

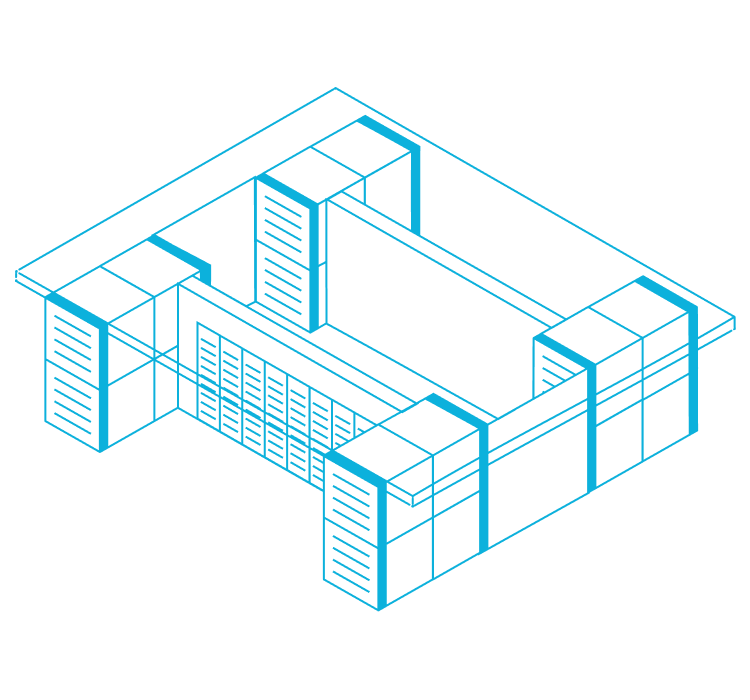

Ultra dense, direct cooling loops

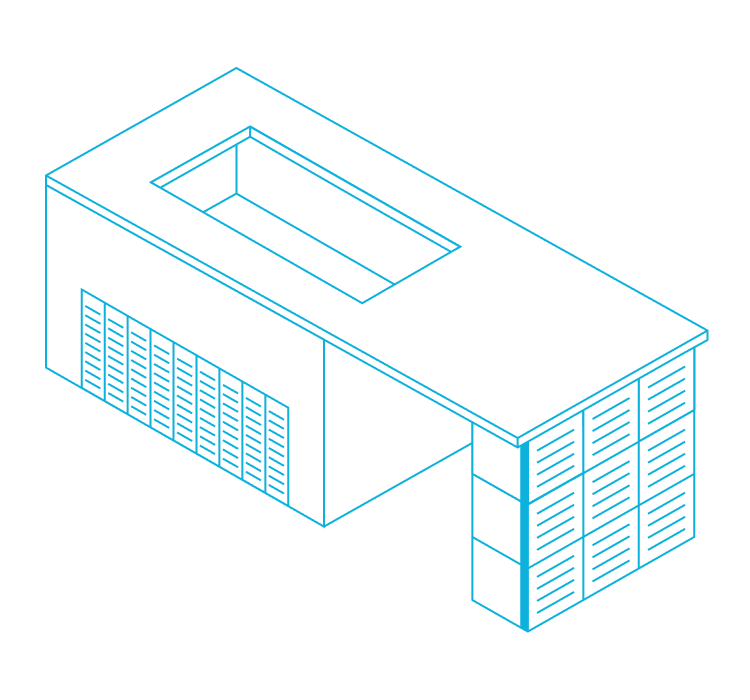

Fan wall cooling with ceiling plenum
