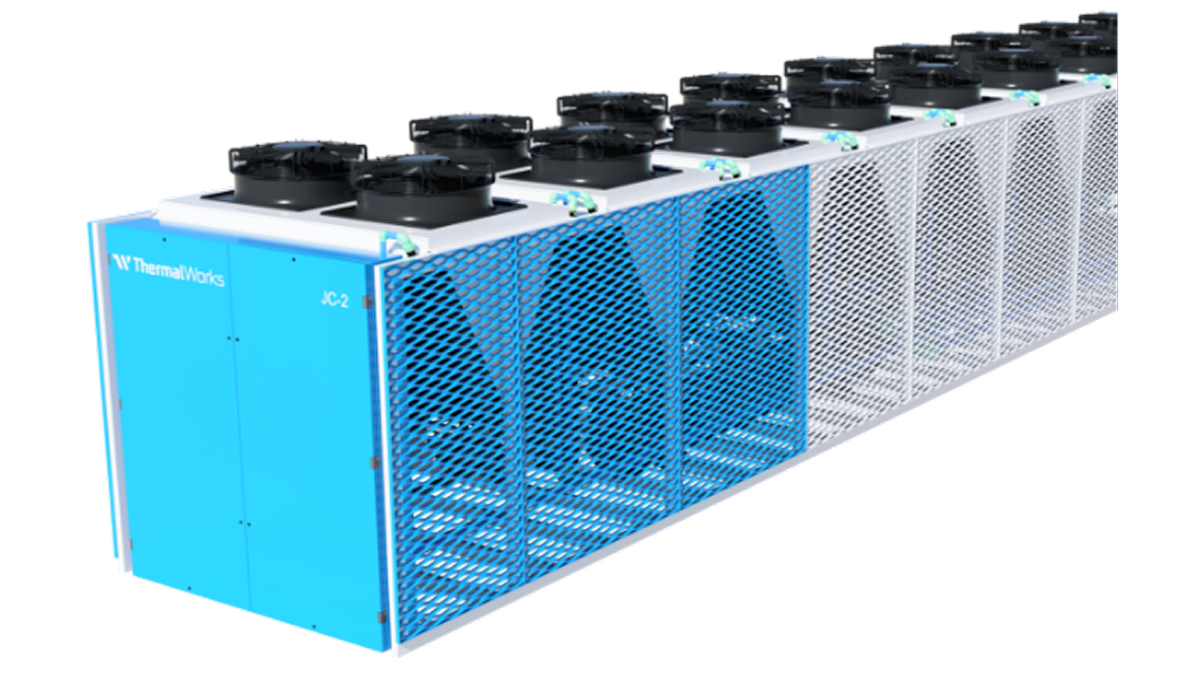

C2000 Waterless Chiller Plant

The ThermalWorks C2000 Waterless Chiller sets a new standard for efficient operation and rapid deployment. This air-cooled chiller maintains critical cooling even in high ambient temperatures above 135ºF and consumes no water.

KEY FEATURES
  • Micro-channel type high efficiency fluid coolers and condensers
  • Variable speed fans and pumps
  • Industry leading, oil-free Danfoss Turbocor® centrifugal compressor for maximum efficiency and reliability
  • Zero WUE: Setting a new industry standard (average 1.8) for unmatched efficiency (compared with average WUE of 1.8 liters/kWh)
  • Built-in waste heat recovery with export at 140ºF (high value)​
  • PLC-based controls and power distribution equipment
  • Flooded evaporators
  • Automatic transfer switch
  • Power meter
KEY FEATURES
  • Micro-channel type high efficiency fluid coolers and condensers
  • Variable speed fans and pumps
  • Industry leading, oil-free Danfoss Turbocor® centrifugal compressor for maximum efficiency and reliability.
  • Zero WUE: Setting a new industry standard (average 1.8) for unmatched efficency
  • Built-in waste heat recovery with export at 140ºF (high value)​
  • Expert engineering from a 2 time Danfoss Envisioneer of the Year winner
  • PLC-based controls and power distribution equipment
  • Flooded evaporators
  • Automatic transfer switch
  • Power meter
Download Spec Sheet
Find Sales Contact

Reliable, Smart, and Efficient Cooling Infrastructure

Redundant Power  & Pumps
Dual power feeds ensure uninterrupted operation.
Smart Integrated Controls
Each chiller has a PLC with a 10.1" display, supporting BACNet, Modbus, and automated setpoint adjustments.
High-Efficiency Heat Transfer
A variable flow control valve scales cooling capacity without manual rebalancing, maintaining system stability.
Durable, Corrosion-Resistant Piping
Non-corrosive Aquatherm SDR11 primary piping and 316-grade stainless steel secondary piping ensure long-term reliability.
Advanced Flow & Remote Monitoring
Flow monitoring is included for both circuits, with optional remote central monitoring available.

Specifications

Cooling capacity
Gross Cooling Capacity
2 MW
Nominal Cooling Capacity
2 MW
Input
450 @ 95°F
Refrigerant Type
R1234ze or R515B
Fluid Type
30% glycol/water by volume
Total Fluid Pressure Drop
15 psi
Flow Rate
420 gpm
Evaporator
Entering Fluid temperature
97°F
Leaving Fluid Temperature
62°F
Condenser/Fluid cooler
Number of Fans
18
Fan FLA (each)
5.0 @ 400 VAC 4.4 @460 VAC
Compressors
Quantity
4
Type
Magnetic bearing oil-free centrifugal
FLA (each)
207 @ 400 VAC 180 @ 460 VAC
PUMP
Quantity
2
FLA
42.0 @ 400 VAC 36.5 @ 460 VAC
Design Flow
300 gpm
Design Head
240 ft
Electrical data
Volts/Ph/Hz
400/3/50 or 460/3/60
Total FLA
885 @ 400 VAC 770 @ 460 VAC
Physical Data
Length x Width x Height
632 x 102 x 108 inches
Shipping Weight
38,580 lb
Operating Weight (without mesh)
47,620 lb
Operating Weight (with mesh)
48,940 lb
Electrical data
Measured Sound Pressure Level at 1m from Front Center of Unit, 85% Fan Speed (test data in accordance with ASTM E1124)
76 dBA
Cooling capacity
Evaporator
Condenser/Fluid cooler
Compressors
Pump
Electrical data
Physical Data
Electrical data
Gross Cooling Capacity
2 MW
Nominal Cooling Capacity
2 MW
Input
450 @ 95°F
Refrigerant Type
R1234ze or R515B
Fluid Type
30% glycol/water by volume
Total Fluid Pressure Drop
15 psi
Flow Rate
420 gpm
Entering Fluid temperature
97°F
Leaving Fluid Temperature
62°F
Number of Fans
18
Fan FLA (each)
5.0 @ 400 VAC 4.4 @460 VAC
Quantity
4
Type
Magnetic bearing oil-free centrifugal
FLA (each)
207 @ 400 VAC 180 @ 460 VAC
Quantity
2
FLA
42.0 @ 400 VAC 36.5 @ 460 VAC
Design Flow
300 gpm
Design Head
240 ft
Volts/Ph/Hz
400/3/50 or 460/3/60
Total FLA
885 @ 400 VAC 770 @ 460 VAC
Length x Width x Height
632 x 102 x 108 inches
Shipping Weight
38,580 lb
Operating Weight (without mesh)
47,620 lb
Operating Weight (with mesh)
48,940 lb
Measured Sound Pressure Level at 1m from Front Center of Unit, 85% Fan Speed (test data in accordance with ASTM E1124)
76 dBA

Three Modes of Operation

FREE COOLING
On cooler days, return hydronic fluid from the facility is cooled by ambient air using the fluid cooler coils, and both compressor circuits are off.
MECHANICAL ASSIST
As outdoor temperature increases, one or both compressors start, and additional trim cooling is provided by the compressor circuits.
FULL MECHANICAL
As the outdoor temperature increases further, the fluid cooler coils are bypassed, and all cooling is done by the compressor circuits.
Free Cooling
On cooler days, return hydronic fluid from the facility is cooled by ambient air using the fluid cooler coils, and both compressor circuits are off.
Mechanical Assist
As outdoor temperature increases, one or both compressors start, and additional trim cooling is provided by the compressor circuits.
Full Mechanical
As the outdoor temperature increases further, the fluid cooler coils are bypassed, and all cooling is done by the compressor circuits.

Climate-Smart Climate Control

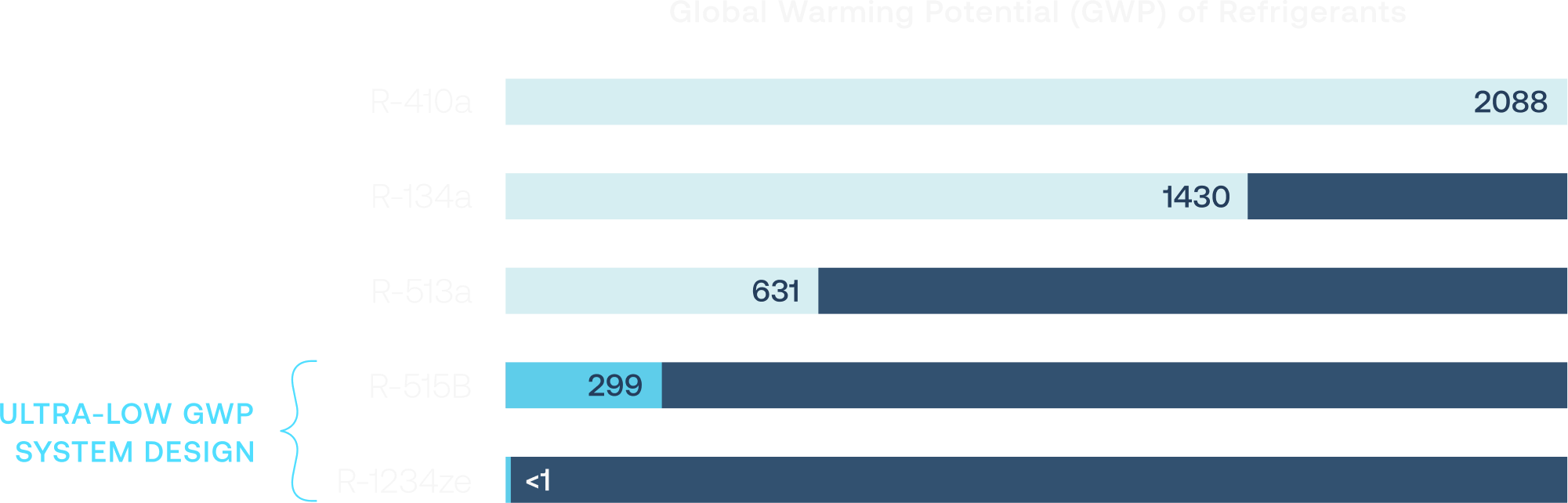

ThermalWorks primary hydronic loop (over 90% of system fluids) uses non-toxic glycol with zero Global Warming Potential (GWP). Each Chiller also contains a factory-sealed mechanical loop which uses ultra-clean R-1234ze or R-515b, some of the lowest GWP refrigerants available anywhere.

System Comparison

Typical Competitor
Annualized PUE
1.15
1.3
Economizer Coils
Enables free cooling, reduces energy consumption, extends compressor life
Integrated Pumps
Improves reliability, reduces installation cost, saves space
Integrated ATS
Ensures power redundancy and fast recovery time
High Delta T Design
Supports extreme temperatures for improved reliability
Integrated Controls
Supports extreme temperatures for improved reliability
